Eagle Vision - Pard NV008S / Sytong Mount - Windage + Elevation Adjustable

Description

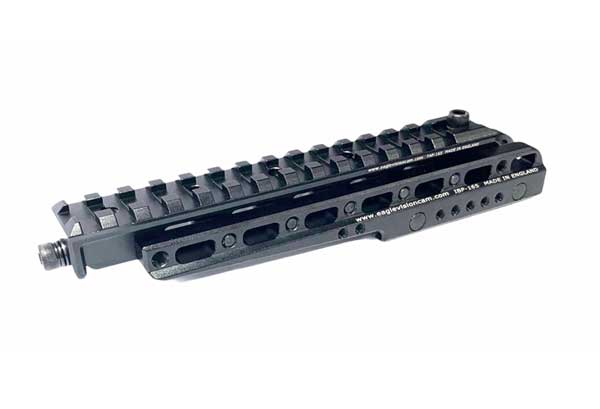

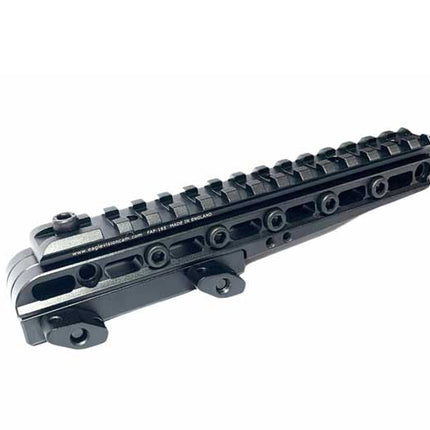

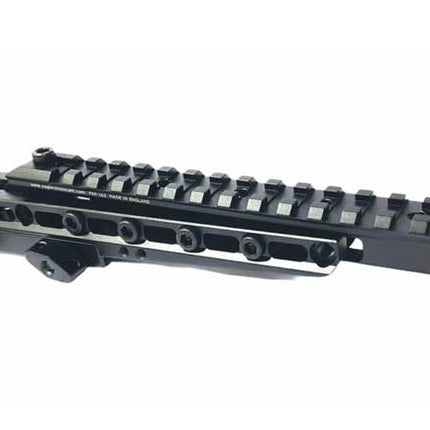

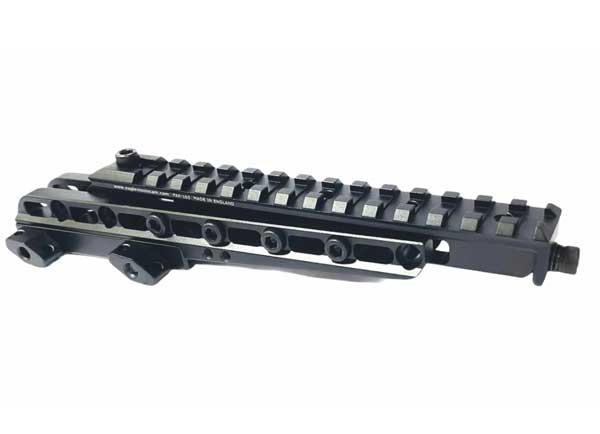

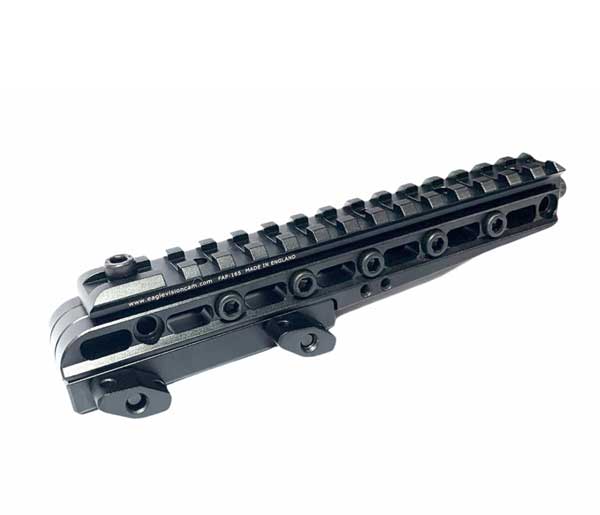

NEW - Eagle Vision Pard NV008S / Sytong Mount - Windage + Elevation Adjustable

Eaglevision have designed and developed an amazing new Picatinny mount.
We are very proud of this product as it’s development resolves some issues for shooters, who depend on the reliability of a solid mount.

Main benefits of using this mount:

1. NV scope:

It can be directly fitted to the SYTONG vision scope - no need for Sytong Mount.

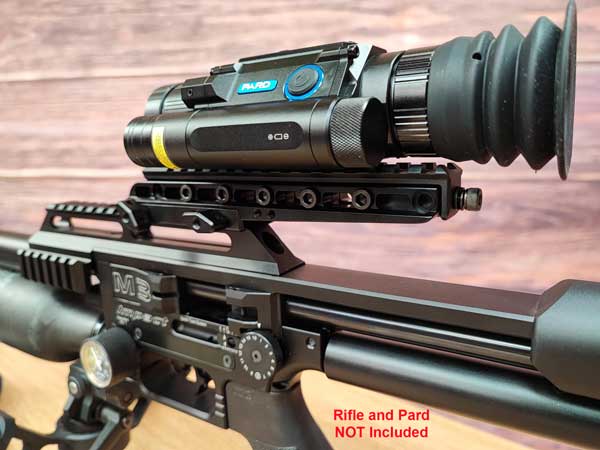

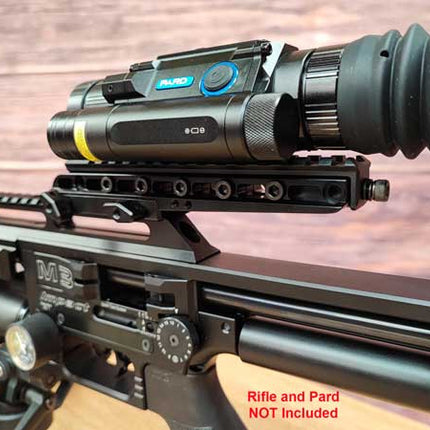

It can be directly fitted to the PARD 008S vision scope - no need for Pard Mount

2. Adjustability:
FULLY ADJUSTABLE, FORWARD or BACKWARD , ELEVATION, WINDAGE, EYE RELIEF AND HEIGHT ADJUSTMENT, that allows the scope to move vertically and horizontally along a guided path, and lockable in different positions, using 3x or 4x or 5x screws on the side of this mount.

3. longer range shooting:
long range before running out of adjustment on the turrets
is the ability for users who need to reach out further but are restricted by their current mounting system.
By keeping the front mount at it’s lowest and elevating the rear mount to the highest point you can zero in your gun far beyond, without using the clicks on your turrets, hence keeping the optical centre of your scope intact.

4. Multiple rifles:
This system can be used to install scope mounts for the owner’s of multiple rifles who require to use one scope for all of their rigs by installing one Infinity mount to each rifle.
They can zero then just swap the scope between them, with little need for turret click adjustment.

6. Durability:
This product is robust enough to be installed on heavy recoil rifles, up to .308 caliber.

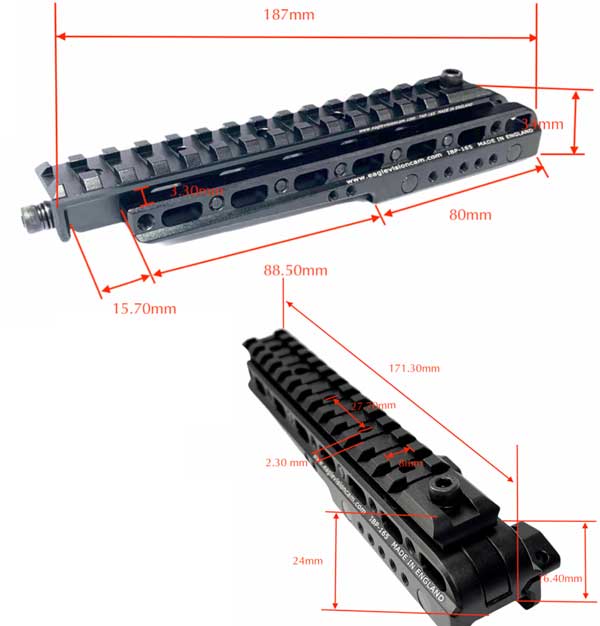

Technical information for the new ‘INFINITY’ mount:

Length: 170mm
Profile height from bottom of the mount to middle of the top picatinny rail, 21mm.
Total height: 30.30mm
Adjustable Height: 4.5mm
Weight: 225 grams

Product includes:

1x Infinity picatinny mount
3 x Allen keys, (two different sizes)
2 x side screws
1x m5 spring screws
1x Waterproof case
6x aluminium washers M6 to M5 adapter use for Sytong
6x  read stainless steel M6 washers M6 spacer use for pard 008S

Please note:
The washers must be placed between the screws and the mount.
The washers are flat and once they start being tightened their shape adjusts to the countersunk holes.

Washer Fitting Guide is HERE

Torque calculation:
Adjustable side screws maximum torque,
53-71 inch-pound force to 6-8 NM Newton Meters.
Picatinny nuts maximum torque,
53-71 inch-pound force to 6-8 NM Newton Meters.

This video is for the earlier version - but the basic setup still applies. Just additional use of the washers with the Pard Screws.

Mini Version is now available - click here.

Use the separate windage and elevation screw to fine tune the mount.

Picatinny Mounting ( purchase optional extra Pic to Dovetail adapter )

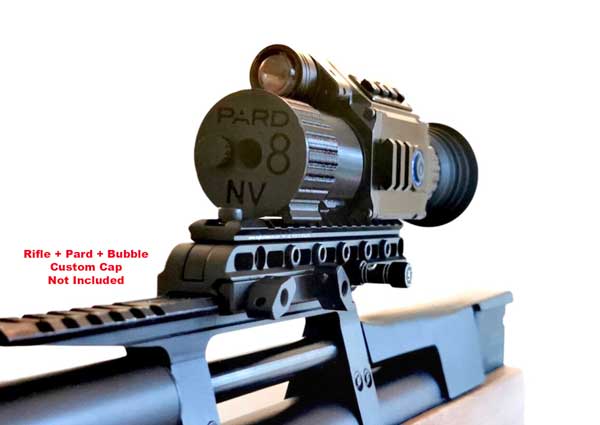

Bubble Mount NOT included - Can be purchased separately

    Product form

    NEW - Eagle Vision Pard NV008S / Sytong Mount - Windage + Elevation Adjustable Eaglevision have designed and developed an amazing... Read more

    SKU: IBP-165-FAP-008S
    Barcode: IBP-165-FAP-008S

    In stock

    £129.99£119.99 Incl. VAT

        • Shipping Calculated On Checkout
        • 2nd Class, 1st Class and Courier Options
        • Secure Checkout

        Description

        NEW - Eagle Vision Pard NV008S / Sytong Mount - Windage + Elevation Adjustable

        Eaglevision have designed and developed an amazing new Picatinny mount.
        We are very proud of this product as it’s development resolves some issues for shooters, who depend on the reliability of a solid mount.

        Main benefits of using this mount:

        1. NV scope:

        It can be directly fitted to the SYTONG vision scope - no need for Sytong Mount.

        It can be directly fitted to the PARD 008S vision scope - no need for Pard Mount

        2. Adjustability:
        FULLY ADJUSTABLE, FORWARD or BACKWARD , ELEVATION, WINDAGE, EYE RELIEF AND HEIGHT ADJUSTMENT, that allows the scope to move vertically and horizontally along a guided path, and lockable in different positions, using 3x or 4x or 5x screws on the side of this mount.

        3. longer range shooting:
        long range before running out of adjustment on the turrets
        is the ability for users who need to reach out further but are restricted by their current mounting system.
        By keeping the front mount at it’s lowest and elevating the rear mount to the highest point you can zero in your gun far beyond, without using the clicks on your turrets, hence keeping the optical centre of your scope intact.

        4. Multiple rifles:
        This system can be used to install scope mounts for the owner’s of multiple rifles who require to use one scope for all of their rigs by installing one Infinity mount to each rifle.
        They can zero then just swap the scope between them, with little need for turret click adjustment.

        6. Durability:
        This product is robust enough to be installed on heavy recoil rifles, up to .308 caliber.

        Technical information for the new ‘INFINITY’ mount:

        Length: 170mm
        Profile height from bottom of the mount to middle of the top picatinny rail, 21mm.
        Total height: 30.30mm
        Adjustable Height: 4.5mm
        Weight: 225 grams

        Product includes:

        1x Infinity picatinny mount
        3 x Allen keys, (two different sizes)
        2 x side screws
        1x m5 spring screws
        1x Waterproof case
        6x aluminium washers M6 to M5 adapter use for Sytong
        6x  read stainless steel M6 washers M6 spacer use for pard 008S

        Please note:
        The washers must be placed between the screws and the mount.
        The washers are flat and once they start being tightened their shape adjusts to the countersunk holes.

        Washer Fitting Guide is HERE

        Torque calculation:
        Adjustable side screws maximum torque,
        53-71 inch-pound force to 6-8 NM Newton Meters.
        Picatinny nuts maximum torque,
        53-71 inch-pound force to 6-8 NM Newton Meters.

        This video is for the earlier version - but the basic setup still applies. Just additional use of the washers with the Pard Screws.

        Mini Version is now available - click here.

        Use the separate windage and elevation screw to fine tune the mount.

        Picatinny Mounting ( purchase optional extra Pic to Dovetail adapter )

        Bubble Mount NOT included - Can be purchased separately
