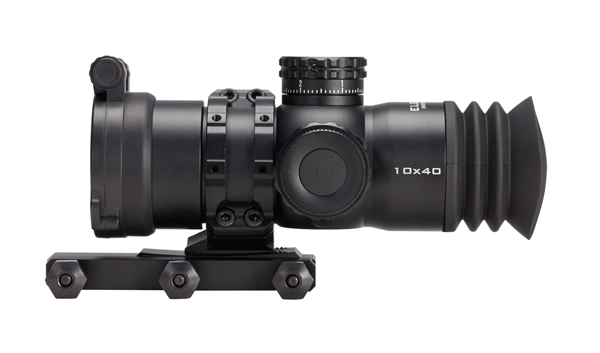

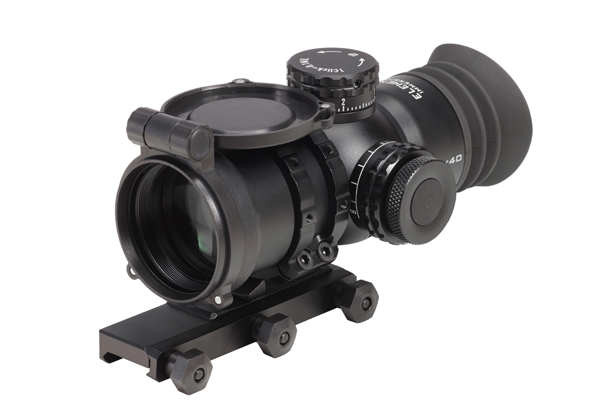

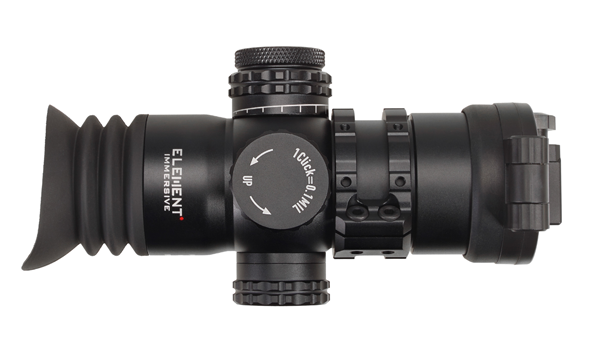

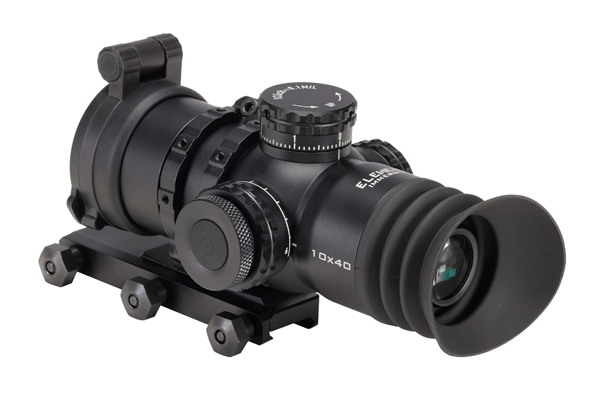

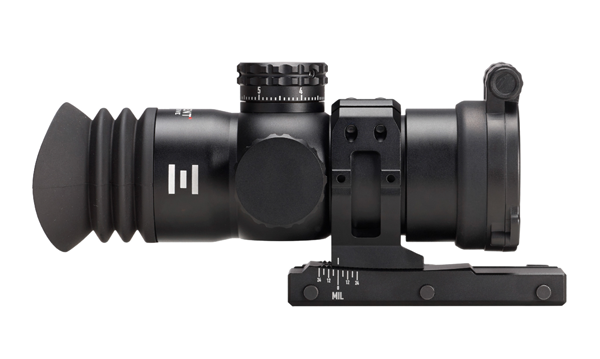

Description Element Optics Immersive Series 10x40 APR-1C MRAD Scope
COMING SOON.....
Traditional riflescopes have their place in the optics world, but new technology is allowing us to push the envelope of what is possible. The Immersive Series brings you range of ultra-compact Prismatic Riflescopes with many unique properties, including market-leading field of view, drawing you in to your surroundings for a better perspective. Unlike conventional scopes, which present the image from the eyepiece as floating distantly in front of you, the image from an Immersive Series scope allows for vastly improved peripheral awareness, giving the impression that you are immersed in the scene – and with the optical clarity of ED Glass, there are no compromises.
The 10×40 and 14×50 models feature a short eye relief, allowing for an incredible field of view of up to 4x a traditional riflescope at the same magnification.
VIDEO
Compact, Lightweight design
Tilt-Adjustable Unimount with 3x Base Lengths Included

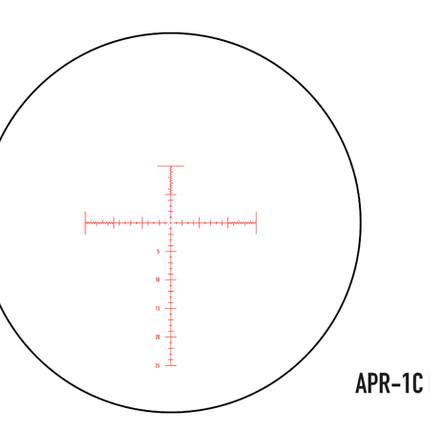

Illuminated Reticle (Push-Button System)
Side Parallax: 6yds-Infinity
ED Glass for reduced chromatic aberration and improved sharpness
Exposed Elevation turret, Capped Windage Turret (both resettable)
Waterproof, Fogproof, Shockproof & Nitrogen Purged
Magnetic Flip Cap & Rubber Eyecup Included
VIDEO
MAGNIFICATION
10x
TUBE DIAMETER
OBJECTIVE LENS DIAMETER
40mm
EXIT PUPIL
EYE RELIEF
0.7” (18mm)
FIELD OF VIEW
@100yds: 34ft | @100m: 11.4m
CLICK VALUE
1/4 MOA (15 MOA / REV)
1/10 MRAD (6 MRAD / REV)
ELEVATION ADJUSTMENT RANGE
83 MOA
28 MRAD
WINDAGE ADJUSTMENT RANGE
83 MOA
28 MRAD
MINIMUM PARALLAX
6 YDS
6 METERS
LENGTH
5.31”
135mm
WEIGHT (W/MOUNT)
17.1oz
485g
