Description

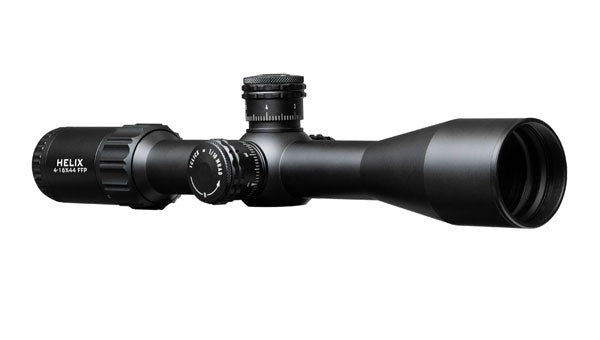

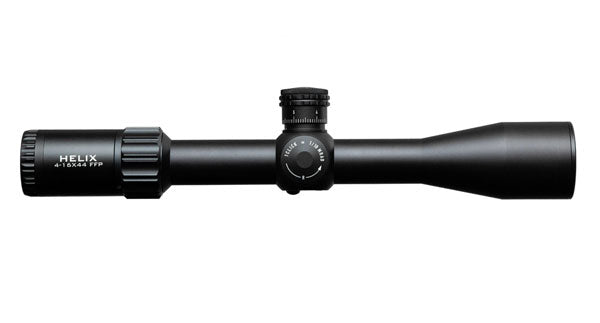

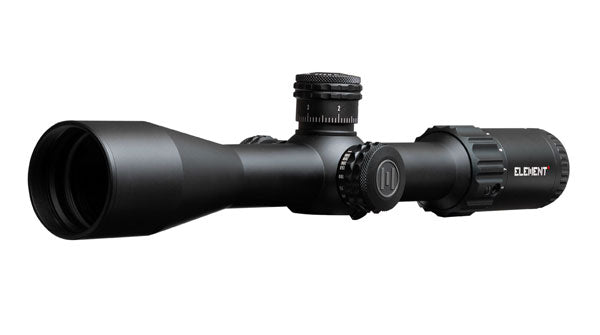

Element Optics - Helix 4-16x44 FFP APR-1C MRAD
The latest addition to the Element Optics lineup, the 4-16x44 Helix FFP offers all the brilliant features and rugged reliability that the 6-24x50 does, but with a distinct advantage: This is the lightest, most compact scope Element have made to date.
-
30mm Main Body Tube
-
Compact, Lightweight design
-

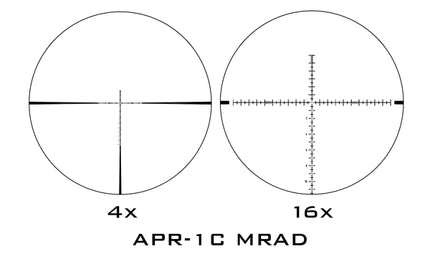

First Focal Plane Reticle
-
Aircraft Grade Aluminium
-
Side Parallax: 15yds-Infinity
-
Fully Multi-Coated Lenses
-
Tool-free Resettable Turrets with 6 MRAD / 15 MOA per Revolution
-
Hard Mechanical Zero-Stop
-
Removable Magnification Throw Lever
-
Waterproof, Fogproof, Shockproof & Nitrogen Purged
-
Sunshade, Lens Cloth & Rubber Lens Caps included
MAGNIFICATION RANGE
|
4-16x
|
TUBE DIAMETER
|
30mm
|
OBJECTIVE LENS DIAMETER
|
44mm
|
EXIT PUPIL
|
13.5-3.3mm
|
EYE RELIEF
|
3.7 Inches
|
FIELD OF VIEW
|
@100yds: 26.2-6.55ft
|
CLICK VALUE
|
1/4 MOA (15 MOA / REV)
|
1/10 MRAD (6 MRAD / REV)
|
ELEVATION ADJUSTMENT RANGE
|
80 MOA
|
23.3 MRAD
|
WINDAGE ADJUSTMENT RANGE
|
45 MOA
|
13.1 MRAD
|
MINIMUM PARALLAX
|
15 YDS
|
15 METERS
|
LENGTH
|
14.2 Inches
|
360 mm
|
WEIGHT
|
23.8oz
|
675g
|
Warranty - Aftersales - Service - Please visit - https://element-optics.com/warranty/
Lifetime Warranty is with Element Optics.
Retailer is unable to repair / authorise repair via third party. Within 30 days of purchase returns will be sent to Element Optics for testing.
All scopes are serial numbered and tested at departure and FX Factory.
