Performance
|
Magnification
|
3 - 12x
|
|
Field of view at 100 meters
|
13 - 3.2 meters
|
|
Diopter adjustment
|
-2.5 / +2.5
|
|
Eye relief
|
80 - 89 mm
|
|
Click Value at 100 yds
|
1/4 MOA / 0.1 MRAD per Click
|
|
Main tube diameter
|
30 mm
|
|
Lens Coating
|
Multi-coated Green lense
|
|

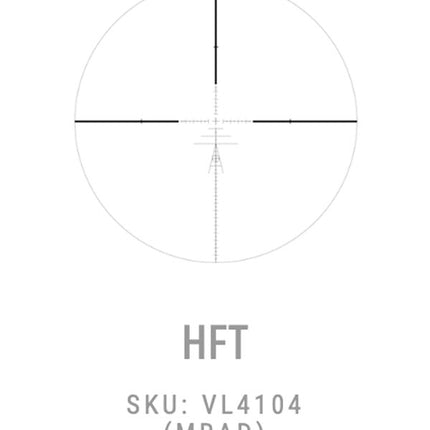

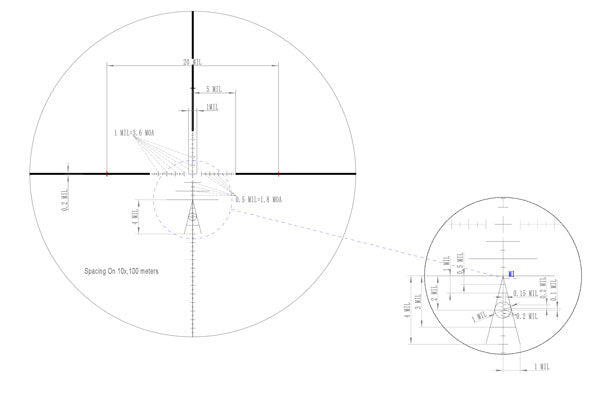

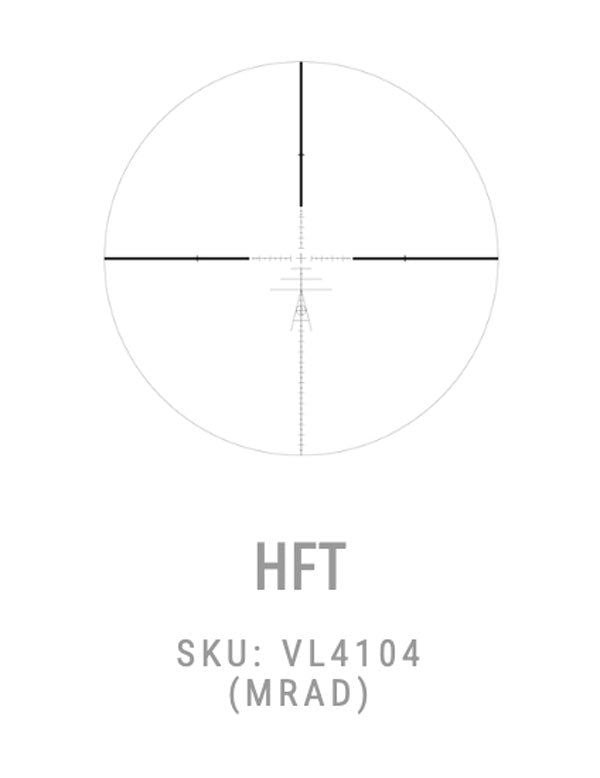

Reticle
|
Etched Glass
|
|
Exit Pupil
|
13.86 - 3.41 mm
|
|
Parallax Correction
|
10 yds - infinity
|
Features
|
Resistance
|
Waterproof / Shockproof / Fogproof
|
|
Turrets
|
Low profile
|
|
Illumination
|
NO
|
Physical
|
Overal Length
|
273 mm (10.7 in)
|
|
Mounting Length
|
178 mm (7 in)
|
|
Weight
|
630 g
|
|
Parallax Type
|
Side Focus
|
Retailer is unable to repair / authorise repair via third party. Within 30 days of purchase returns will be sent to Valiant Scopes for testing.
All scopes are serial numbered and tested at departure from factory.
WE DO NOT SHIP THESE ITEMS TO ANY ADDRESS OUTSIDE THE UK - IF YOU CHECKOUT WE WILL REFUND THE PURCHASE - ANY LOSS OF EXCHANGE CURRENCY IS DOWN TO THE PURCHASER.
