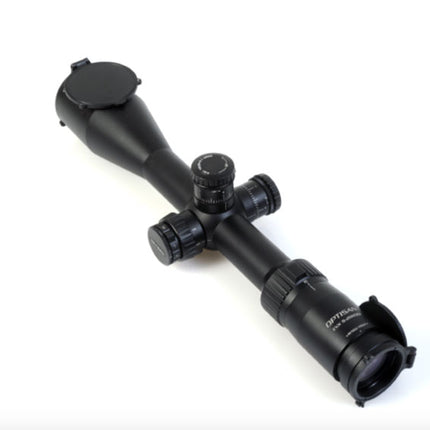

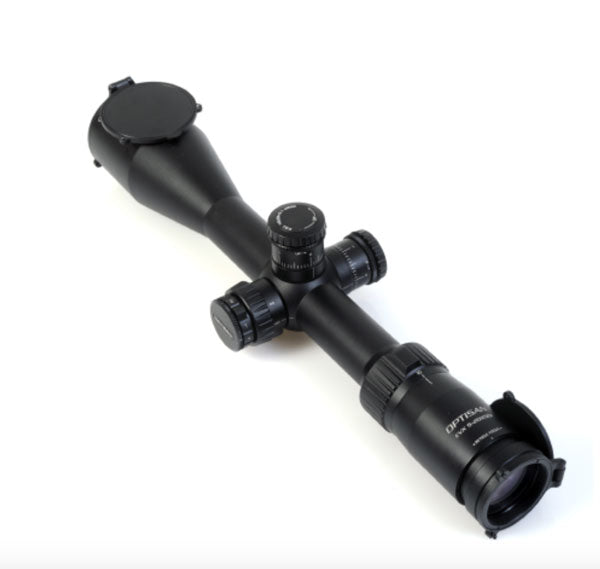

Optisan EVX 5-20x50 Illuminated SFP MIL MH10 MRAD Rifle Scope

Optisan OpticsSKU: Optisan 37526

Sold out


Optisan EVX 5-20x50 Illuminated SFP MIL MH10 MRAD Rifle Scope


The Optisan EVX 5-20x50 offers a mid-high magnification scope - perfect to partner with airguns, rimfires and even full bore rifles.

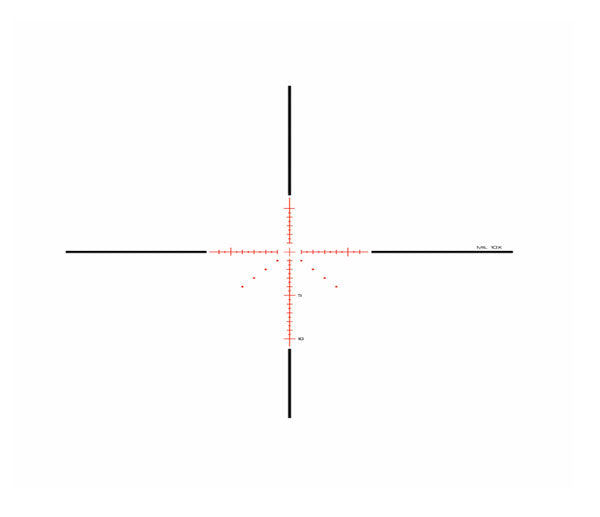

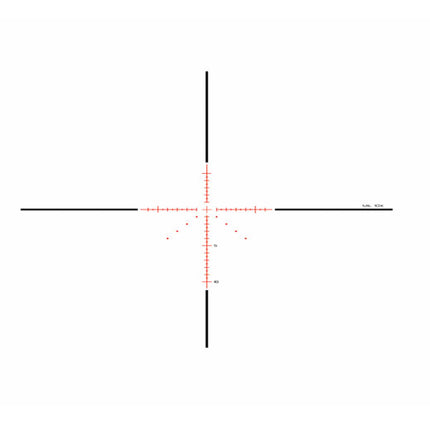

The Optisan EVX 5-20x50 comes with an illuminated enhanced mildot second focal plane reticle, which is great for target shooting, and thumbwheel adjustable, lockable target turrets - making it quick and easy to make precise adjustments.

The EVX 5-20x50 has parallax adjustment via a side focus wheel that offers adjustment from 10 yards to infinity.

Supplied with the Optisan EVX 5-20x50 is a sunshade and a 3-inch sidewheel.

Complete with every Optisan EVX Riflescope is a set of features that the legacy has used in the past but have now been restyled and updated giving the shooter the newest specs needed in today's shooting situations.


More Information

Optisan Optics
Optisan EVX 5-20x50 Illuminated SFP MIL MH10x 0.1 MRAD Rifle Scope
30 mm

0.1 MRAD (cm)



Magnification (High): 20X
Magnification (Low): 5X
Objective Diameter (mm): 50mm
Outer dia. Objective (mm): 59mm
FOV (min.mag)(ft/100yds): 23
FOV (max.mag)(ft/100yds): 5.75
Eye relief (in): 3.8" - 3.5"
Exit Pupil (Max mag.) (mm): 2.5mm
Exit Pupil (min. mag.) (mm): 10mm
Diopter Range (dpt): +2/-2
Parallax Adjustment: 10yds - infinity (100yds parallax free)
Coating: Fully Multi-coated
Tube Construction: One-piece tube, aircraft aluminium
Elevation Adjustment (value per click): 0.1 mrad
Windage Adjustment (value per click): 0.1 mrad
Turret Style (Elevation): Push pull lockable
Turret Style (Windage): Push pull lockable
Travel Per Rotation: 4.8 mil
Elevation adj. range: >= 15 mil
Windage adj. range: >= 15 mil
Eye Piece Diameter (in): 1.73"
Eye Piece Diameter (mm): 44mm
Eye Piece Length (in): 2”
Eye Piece Length (mm): 51.2mm
Mounting Length rear (mm): 58mm
Mounting Length front (mm): 59.3mm
Tube Dia. (mm): 30mm
Length (in): 14.40”
Length (mm): 366mm
Weight (g): 765g
Weight (oz): 26.98oz
Surface Finish: Matte Black
Functional temperature: -20 ~ 50 degree celcius
Storage temperature: -20 ~ 50 degree celcius
Submersion tightness: JIS 7
Reticle: SFPMH10X
Calibrated Ranging Power: 10X
Focal Plane: Second
Illumination: 6 Steps illumination with off setting in between
Made in China
Limited lifetime warranty


  • 5-20x
  • 50mm Objective
  • Waterproof, Fogproof, Shockproof
  • Lockable target turrets
  • 30mm tube
  • Second Focal Plane Reticle
  • Thumbwheel adjustable windage and elevation turrets
  • Side adjustable parallax from 10 yards to infinity
  • 3 inch sidewheel
  • Sunshade
  • Red Illuminated reticle

We do not ship this product outside of England, Scotland, Wales - due to customs restrictions and package sizes.
