Description

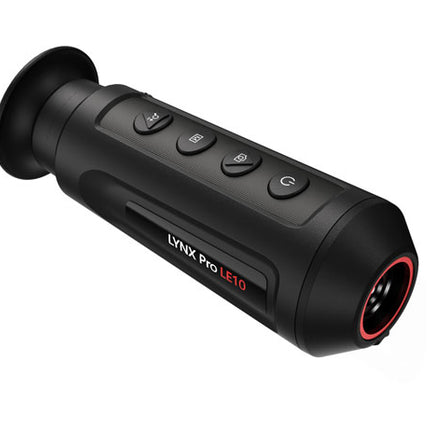

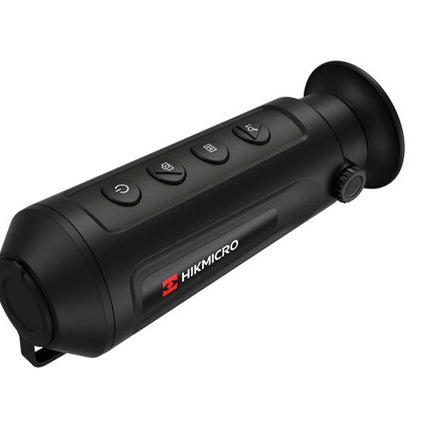

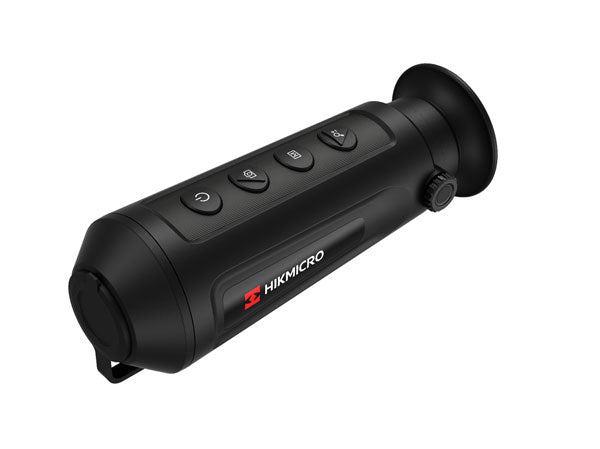

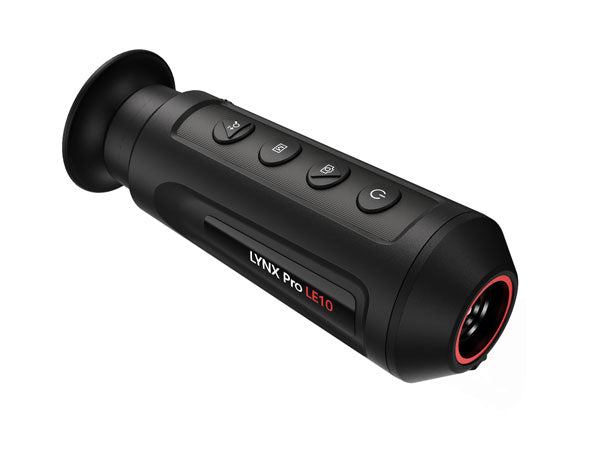

Hik Micro Lynx Pro 10mm 35mk 256x192 12um Smart Thermal Monocular
This is ideal for Rabbit and small pest spotting out to 50 / 100 yards - this is not for spotting foxes at 300 yards, ideal for air rifle shooters who want to gain knowledge of where the pests are.
Joining the range of HIK Micro thermal monoculars – the Lynx LE10 is focused on delivering high-level thermal performance at an entry-level price point.
At the heart of this enhanced performance is the 256 x 192, 12um sensor, this delivers higher levels of image detail that will be especially useful when trying to locate and identify small animals like rabbits, squirrels and birds. The sub 35 NETD performance of the sensor ensures detection of small temperature changes and excellent performance in harsh conditions.
The Lynx 10mm offers the same software as the more expensive HIK models and includes 4 colour palettes, white-hot, black hot, red hot and fusion. The LE10 can also record video or images with the onboard memory or connect to the T-Vision app to seamlessly share or record your shooting experience.
The fixed-focus optical system and wide field of view make it easy to quickly scan large areas and identify them.
More Information
| Brand |
HIKMICRO |
| Popularity |
HIKMICRO Lynx PRO 10mm Smart Thermal Monocular |
| SKU |
HM-LE10 |
| Unit Type |
Thermal |
| Colour Palettes |
Yes |
| Detection Range |
450m |
| Display Resolution |
720x540 |
| Display Type |
LCOS |
| Magnification (Digital) |
8x |
| Magnification (Optical) |
1x |
| NETD |
<35mK |
| Objective Lens Diameter |
10mm |
| Operating Temperature |
-20/+55°C |
| Pixel Pitch |
12μm |
| Refresh Rate |
25HZ |
| Sensor Resolution |
256x192 |
| Video Recording |
Yes |
| WiFi |
Yes |
Download the HIK App here:
https://apps.apple.com/us/app/t-vision/id1478705944
https://www.app-st.net/ZdMM
Main
- Sensor: 256x192px @ 12µm
- Objective Lens (Focal Length): 10 mm
- Detection Range (Human 1.8m x 0.5m): 458 m
Sensor
- Type: VOx Uncooled Focal Plane Arrays
- Resolution, pixels: 256 x 192 PX
- Pixel pitch, um: 12µm
- Frame rate, Hz: 25 Hz
- NETD: <35mK
Optics
- Objective lens: F1.0
- Magnification (optical): 1x
- Magnification (Digital): 1x, 2x, 4x, 8x
- Field of view: 18.00° × 13.55° (H × V)°
Display
- Type: 5.08mm, LCOS
- Resolution, Pixels: 720 × 540
- Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
Video Recorder
Additional features
- Hot tracking: Yes
- WIKI Hot spot: Yes
- T-Vision App support: Yes
Environmental
- Degree of protection, IP code: IP67
- Dust protection: Protected against dust ingress
- Water protection: Protected against temporary submersion in water
- Operating temperature range: -20 °C to 55 °C
Weight & size
- Dimensions, mm: 158 mm x 61 mm x 57 mm
- Weight, Kg: 0.26 kg
Power Supply
- Operating time on battery (WIFI & Hot tracking disabled): 8 Hours continuous running
- Charging interface: USB-C
- Battery capacity after 1000 cycles: 80%
WE DO NOT SHIP THESE ITEMS TO ANY ADDRESS OUTSIDE THE UK - IF YOU CHECKOUT WE WILL REFUND THE PURCHASE - ANY LOSS OF EXCHANGE CURRENCY IS DOWN TO THE PURCHASER.
