Description

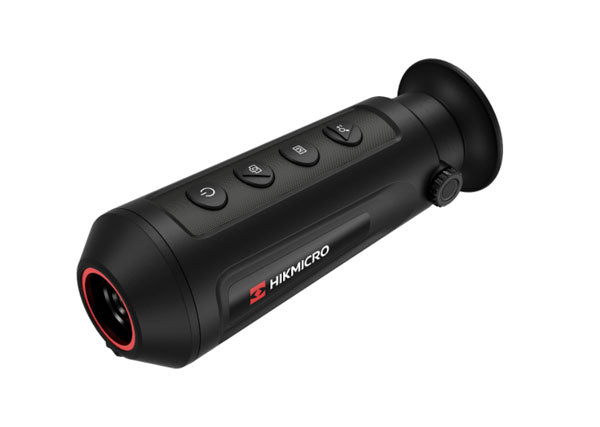

HIK Micro Lynx 6mm 35mK 160x120px 17um
Smart Thermal Monocular
This is ideal for Rabbit and small pest spotting out to 50 / 100 yards - this is not for spotting foxes at 300 yards, ideal for air rifle shooters who want to gain knowledge of where the pests are.
The HIK Micro Lynx 6mm delivers a high-quality thermal image and packs a host of features normally reserved for high-end thermal spotters.
The 160x120px, 17µm thermal sensor (35mK NETD Rating) and HIK software deliver a detailed image to the screen. The WiFi and the dedicated app allow you to take complete control of the unit's settings and features from your smartphone.
35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
IP67 rating guarantees a robust chassis capable of repelling dust and rain, protecting you from the worst of the weather.
Battery life = 10hrs of continuous running!
More Information
| Brand |
HIKMICRO |
| Popularity |
HIKMICRO Lynx 6mm Smart Thermal Monocular |
| SKU |
HM-LC06 |
| Unit Type |
Thermal |
| Colour Palettes |
Yes |
| Detection Range |
550m |
| Display Resolution |
720x540 |
| Display Type |
LCOS |
| FOV @ 100 yards |
24° |
| Magnification (Digital) |
4x |
| Magnification (Optical) |
0.6x |
| NETD |
<35mK |
| Objective Lens Diameter |
6mm |
| Operating Temperature |
-20/+40°C |
| Pixel Pitch |
17μm |
| Rangefinder |
Stadiametric |
| Refresh Rate |
50HZ |
| Sensor Resolution |
160x120 |
| Video Recording |
Yes |
| WiFi |
Yes |
Download the HIK App here:
https://apps.apple.com/us/app/t-vision/id1478705944
https://www.app-st.net/ZdMM
MAIN
Sensor 160×120px @ 17µm
Objective Lens 6mm
Detection Range (Vehicle 1.4 x 4m) 559m
Detection Range (Human 1.8 x 0.5m) 182m
SENSOR
Type Vanadium Oxide Uncooled Focal Plane Arrays
Resolution, pixels 160×120 px
Pixel pitch, µm 17µm
Frame rate, Hz 50 Hz
NETD Rating 35mK
OPTICS
Objective lens F1.1
Magnification (Optical) 0.6x
Magnification (Digital) 1x, 2x, 4x,
Field of view 24.7° × 18.7° (H × V)
DISPLAY
Type 5.08mm, LCOS
Resolution, Pixels 720 × 540
Colour Palettes Black Hot, White Hot, Red Hot, Fusion
VIDEO & SOUND
Video Recorder YES
Sound Recorder NO
Build in memory, Gb 8 Gb
ADDITIONAL FEATURES
Hot Tracking YES
WiFI hot spot YES
T-Vision App support YES
ENVIRONMENTAL
Degree of protection, IP code IP67
Dust protection Protected against dust ingress
Water protection Protected against temporary submersion in water
Operating temperature range -20 °C to 55 °C
WEIGHT & SIZE
Dimensions, mm 158 mm × 61 mm × 57 mm
Weight, kg 0.25 kg
POWER SUPPLY
Operating time on battery
(WiFi & Hot tracking disabled) 10 hours continuous running - estimated.
Charging interface USB-C
Battery capacity after 1000 cycles 80%
WE DO NOT SHIP THESE ITEMS TO ANY ADDRESS OUTSIDE THE UK - IF YOU CHECKOUT WE WILL REFUND THE PURCHASE - ANY LOSS OF EXCHANGE CURRENCY IS DOWN TO THE PURCHASER.
