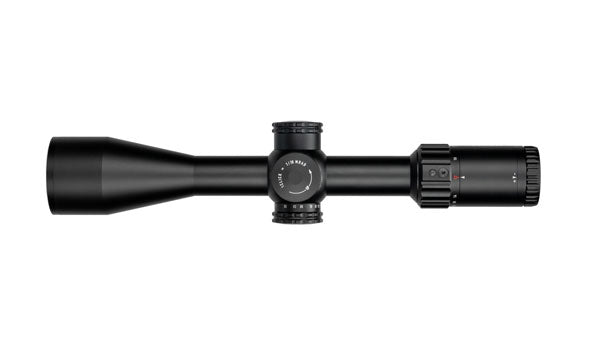

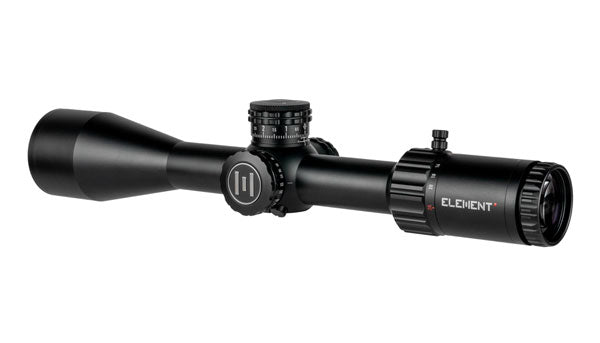

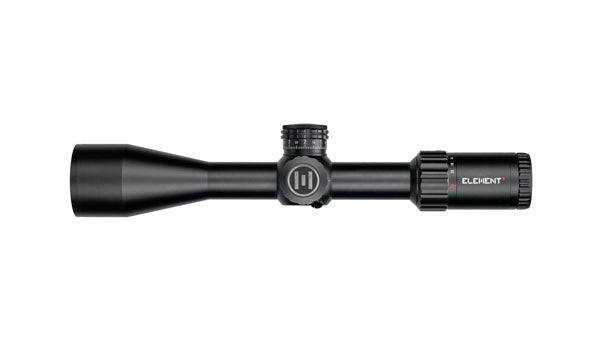

The HELIX GEN 2 continues the legacy of our original HELIX line of riflescopes, with industry-leading reliability and performance taken to the next level with new features and further design improvements.

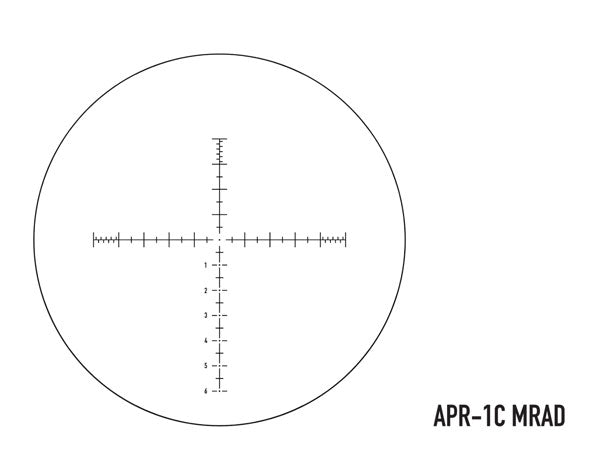

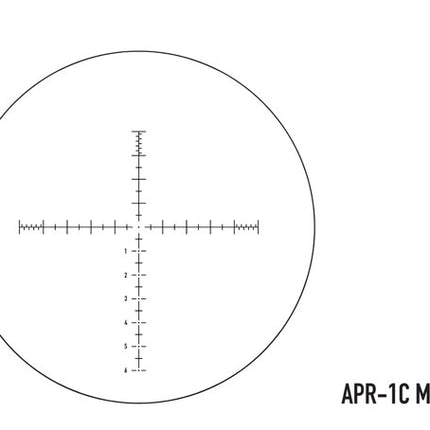

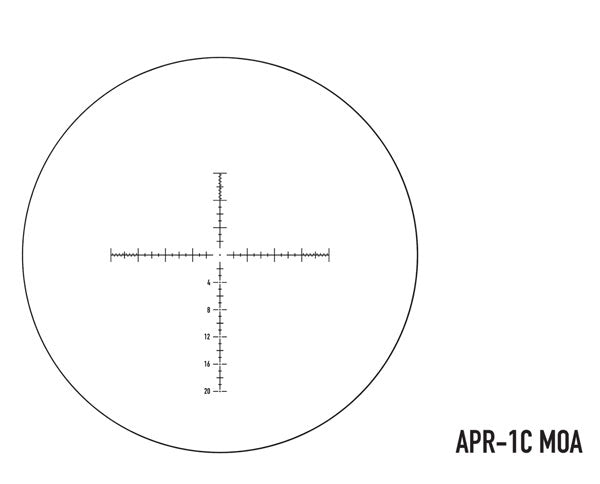

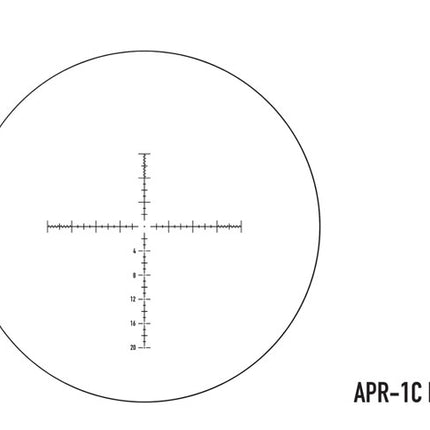

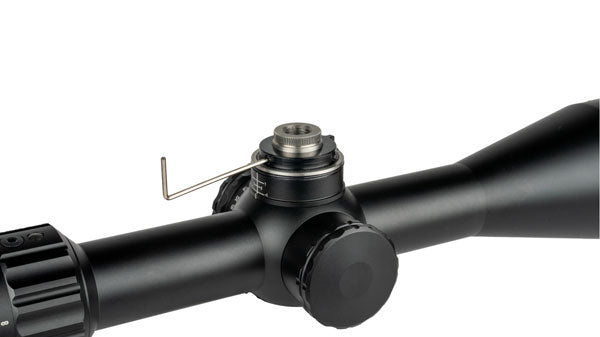

The important things come first: Reliable tracking, intelligent reticles, innovative features and a user-friendly turret system. The turret system is tool-free and now features 8 MRAD or 20 MOA per revolution. The zero-stop mechanism ensures you never lose track of where you are, and the Second Focal Plane reticle ensures a crisp, uncluttered image at all magnifications. Optically, the familiar 4x erector system is complemented by a new design allowing for a larger field of view and a more forgiving eye-box. Stringent quality control checks are in place to ensure repeatable performance under harsh conditions, and if something goes wrong, our Platinum Lifetime Warranty has you covered!
| MAGNIFICATION RANGE |
6-24x |
| TUBE DIAMETER |
30mm |
| OBJECTIVE LENS DIAMETER |
50mm |
| EXIT PUPIL |
8.3-2.1mm |
| EYE RELIEF |
3.7-4 Inches |
| FIELD OF VIEW |
@100yds: 20.1-5.1 ft |
| CLICK VALUE |
1/4 MOA (20 MOA / REV) |
1/10 MRAD (8 MRAD / REV) |
| ELEVATION ADJUSTMENT RANGE |
65 MOA |
18.9 MRAD |
| WINDAGE ADJUSTMENT RANGE |
40 MOA |
11.6 MRAD |
| MINIMUM PARALLAX |
10 YDS |
10 METERS |
| LENGTH |
14.0 Inches |
356 mm |
| WEIGHT |
29.2oz |
830g |
Retailer is unable to repair / authorise repair via third party. Within 30 days of purchase returns will be sent to Element Optics for testing.
