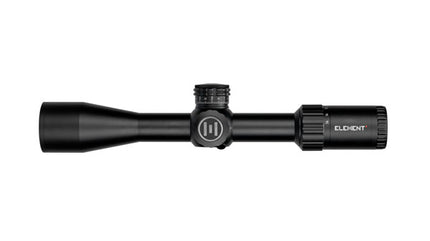

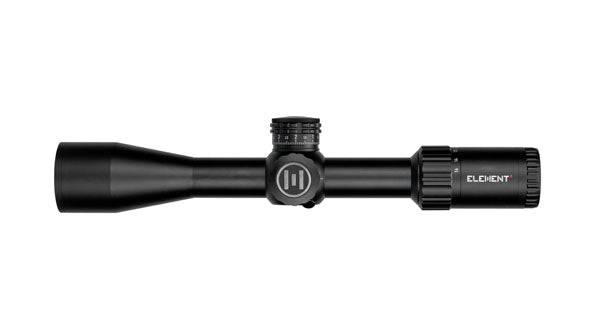

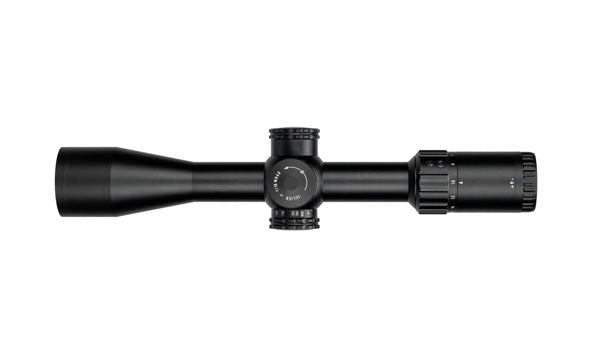

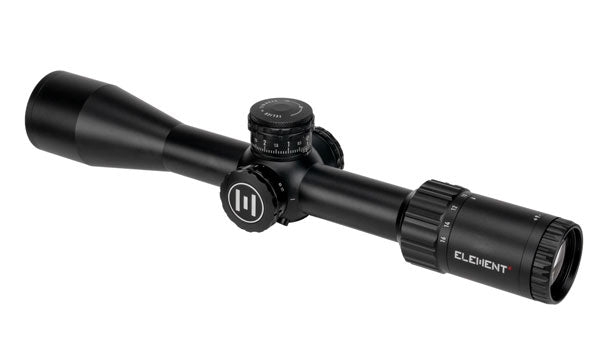

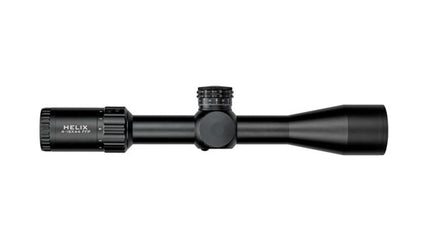

The HELIX GEN 2 continues the legacy of our original HELIX line of riflescopes, with industry-leading reliability and performance taken to the next level with new features and further design improvements.

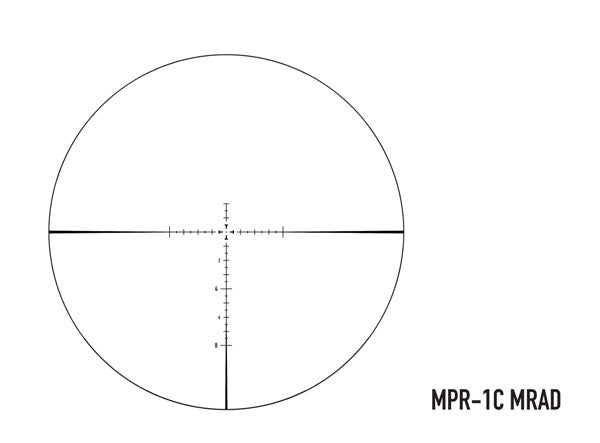

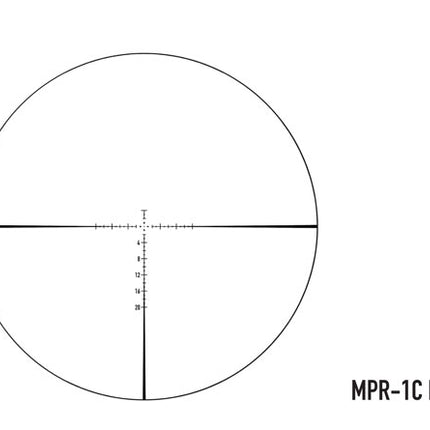

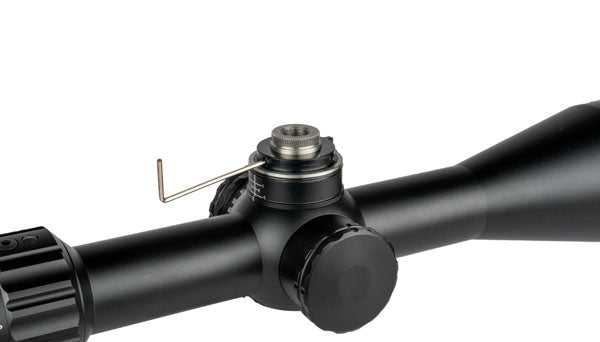

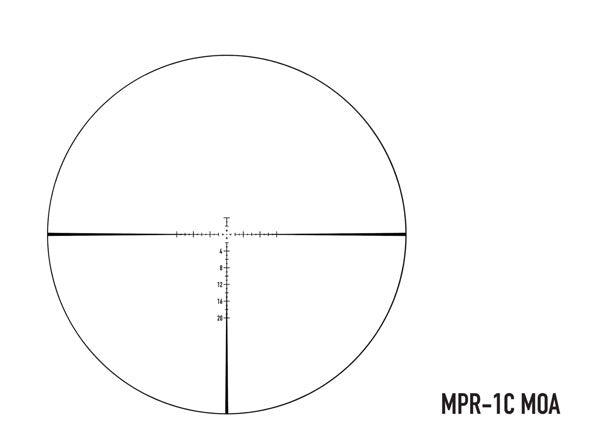

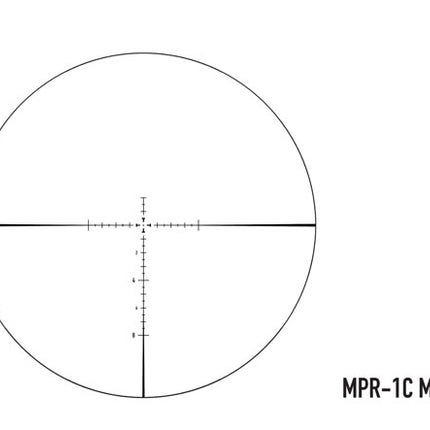

The important things come first: Reliable tracking, intelligent reticles, innovative features and a user-friendly turret system. The turret system is tool-free and now features 8 MRAD or 20 MOA per revolution. The zero-stop mechanism ensures you never lose track of where you are, and the First Focal Plane reticle ensures precise reticle calibration at all magnifications. Optically, the familiar 4x erector system is complemented by a new design allowing for a larger field of view and a more forgiving eye-box. Stringent quality control checks are in place to ensure repeatable performance under harsh conditions, and if something goes wrong, our Platinum Lifetime Warranty has you covered!
| MAGNIFICATION RANGE |
4-16x |
| TUBE DIAMETER |
30mm |
| OBJECTIVE LENS DIAMETER |
44mm |
| EXIT PUPIL |
11-2.75mm |
| EYE RELIEF |
4 Inches |
| FIELD OF VIEW |
@100yds: 30.1-7.5 ft |
| CLICK VALUE |
1/4 MOA (20 MOA / REV) |
1/10 MRAD (8 MRAD / REV) |
| ELEVATION ADJUSTMENT RANGE |
90 MOA |
26.1 MRAD |
| WINDAGE ADJUSTMENT RANGE |
45 MOA |
13 MRAD |
| MINIMUM PARALLAX |
15 YDS |
15 METERS |
| LENGTH |
13.8 Inches |
350 mm |
| WEIGHT |
28.5oz |
808g |
Retailer is unable to repair / authorise repair via third party. Within 30 days of purchase returns will be sent to Element Optics for testing.
