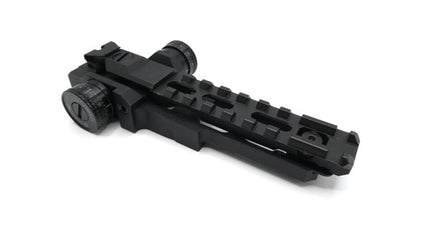

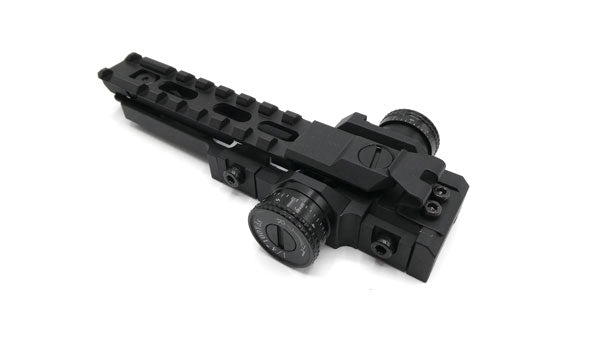

ZB Pro Universal Zeroing Block - PARD S Series compatible - Camiszon
This version is compatible with the New Pard NV008 S scopes.
The NEW zeroing block ZB Pro Universal is a mounting base that allows you to mount a variety of accessories to a gun weaver base, and allows you to change the elevation and windage to zero it.
*This modified version of the universal mount allows you to mount your PARD NV008S / PARD NV008S LRF without the need for the PARD Mount (ZB should be mounted in reverse if not using the optional extra riser)*
THIS DOES NOT INCLUDE RISER PLATES - Can be found here.
Gives you a few mm extra height
Allows you to use a sun shade if required
Allows you to use the ZB Mount forward mounted rather than reverse mounted
* ZB Lite Pro can be used with conventional as well as with digital, Night Vision, Thermal Rifle Scopes, Red Dots and other devices that need to be mounted to a rifle.
* It can be used forward or reversed to accommodate extra eye relief of specific scopes without reach forward mounts.
* It is for recoilless or low recoil rifles.
Do recommend when fixing through the unit / rail - only use for PCP Airguns.
Giles Opinion - This is a handy mount for you Night Vision users. The finish is better than the original, and addition of mounting holes is a welcome feature.
Specifications:
Max weight to mount:
(recoiless) : 800 gr
(recoil up to 300G) : 200 gr
Click Value Elevation : 1/4 MOA
Click Value Windage : 1/4 MOA
Max Adjustment Elevation: 90 MOA
Max Adjustment Windage : 60 MOA
Weight :195 gr
Dimensions :145x65x27mm
Top weaver rail length : 90 mm
Locking jaws span : 54 mm
*New Universal Version allows you to mount your PARD NV008S without the need for the PARD Mount (ZB should be mounted in reverse)* Please NOTE - the focus ring on the front of the Pard will be restricted if you do not use the riser.
The screws that are supplied with the Pard units will not be long enough, use the included screws from ZB.
