Description

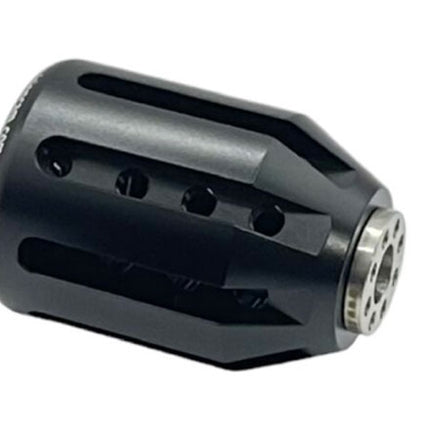

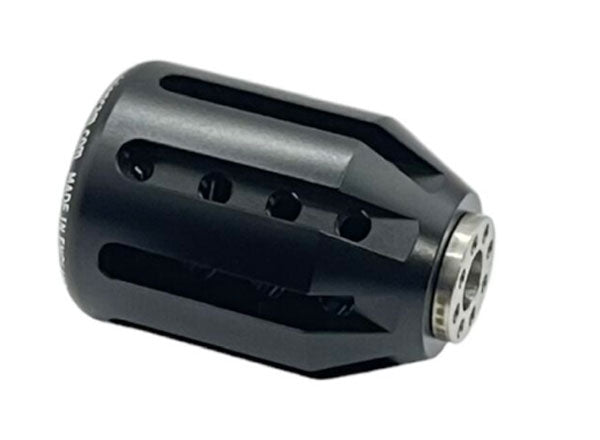

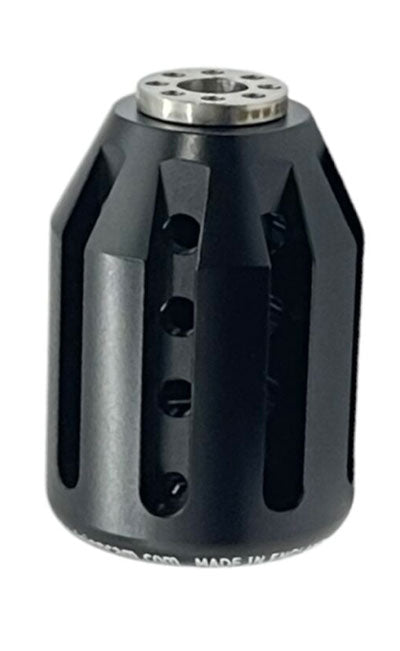

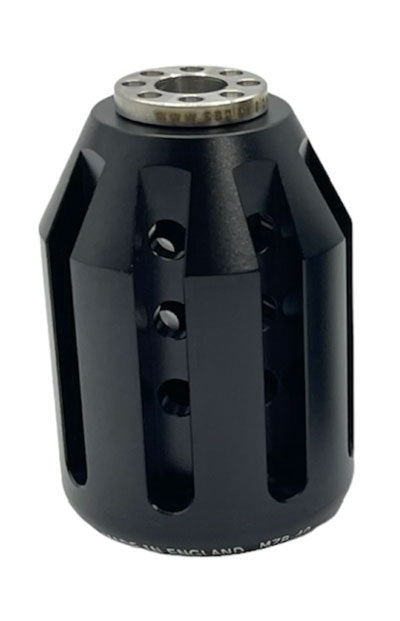

Eagle Vision MZB-40 Muzzle Brake / Air Stripper with Interchangeable caliber
1/2 UNF
Our new multi-caliber muzzle brake system can be used in different air rifles with various calibers.The interchangeable caliber adaptor can easily be swapped for another adaptor, with the tools provided.
Interchangeable end adaptor to 1/2 UNF INCLUDED SHIPS WITH 1/2 UNF ADAPTER
X 20, M14X1.25, M18X1, M20X1 OPTION - NOT INCLUDED
There are no moving parts, all components are fully secured with ‘O’ rings to improve accuracy, limit vibration and avoid pellet clipping.These products are manufactured by 5 Axis CNC tolerance of + or – 0.05
All our end adaptors can be used with future Eagle Vision sound moderators, muzzle brakes and harmonic barrel tuner models.
The caliber specific adaptor helps to increase accuracy;
The holes release air pressure from the sides helping to reduce the recoil.

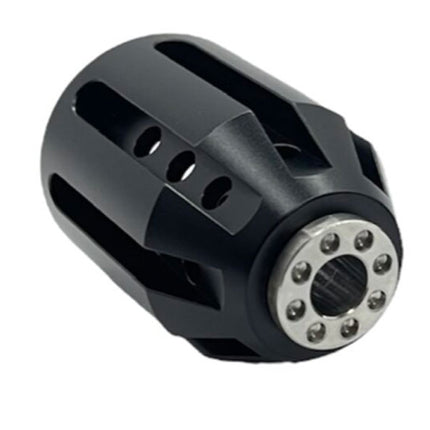

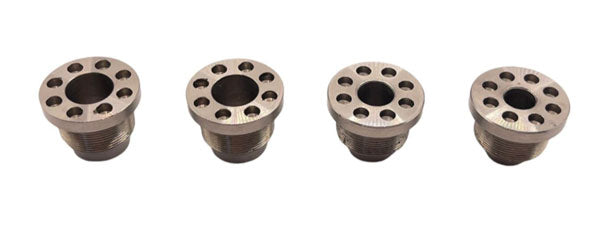

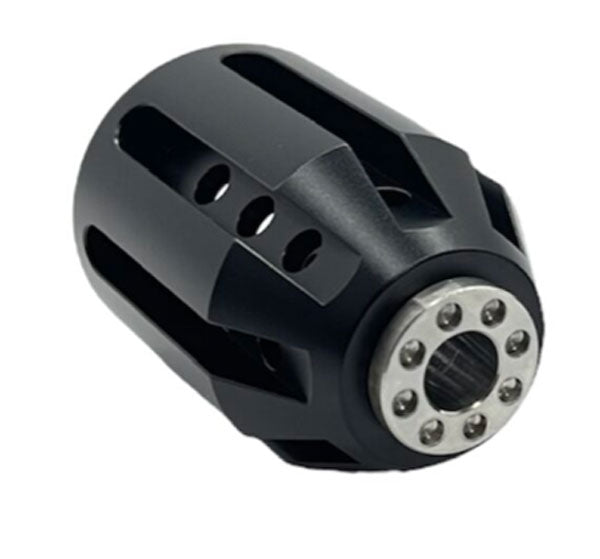

The front caliber adaptor with 8 holes, looks great and is designed so to allow insertion of the stainless steel bar tool, to tighten or loosen the adaptor.

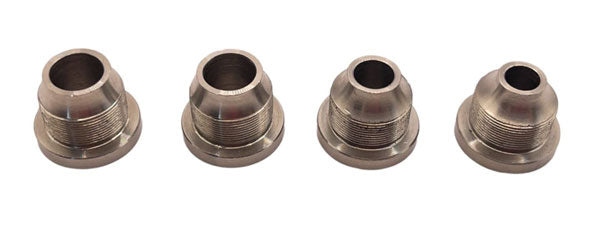

Caliber adaptors:.177, .22, .25 and .30
Some home assembly of muzzle break is required.
SPECIFICATIONS
MZB-40
- Length: 55mm
- diameter: 40mm
- Weight: 82 grams
- End Thread: M23 X 1
- Front Threads: M15X0.6
Product includes:
- 1x Muzzle Brake
- 4x O- rings
- 6x screws

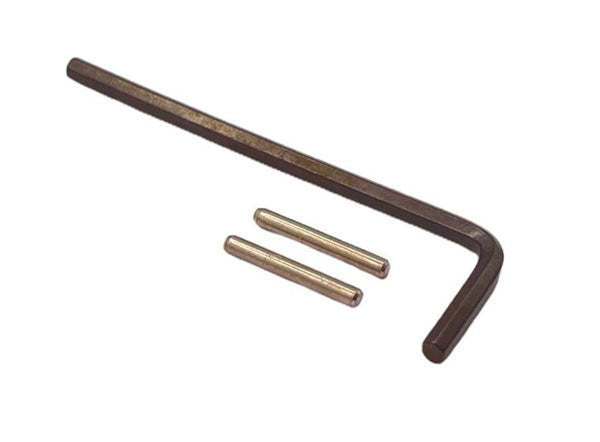

- 1x Allen key
- 1x end adaptor of 1/2 UNF is included

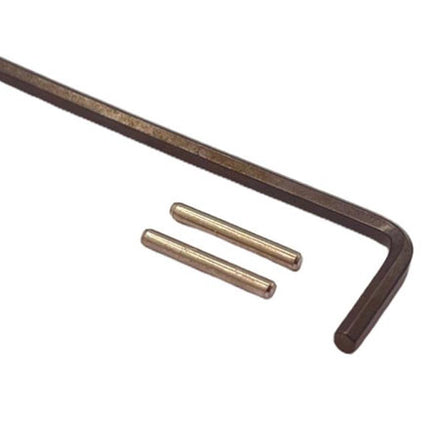

- 2x stainless steel tool bar
- 1x Allen key
- 1x waterproof Storage Case
- 4x piece if caliber specific adaptor .177, .22, .25 and .30 (included 8x stainless steel tool bars)
